Flexplate - Removal






REMOVAL





1. Remove transmission T355 Manual Transmission - Removal or Removal

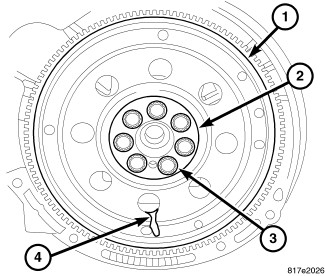

2. Remove flex plate bolts (3) and discard.
3. Remove washer (2).
4. Remove flex plate (1).
