Clutch Slave Cylinder - Installation

INSTALLATION

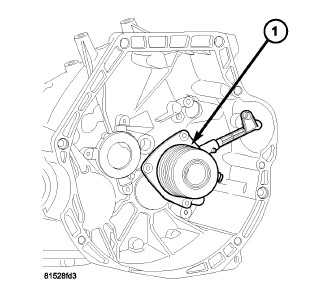

1. Install slave cylinder (1) to transaxle using new bolts.

NOTE: Torque three CSC body screws first, then torque the fluid tube attachment.

2. Torque slave cylinder-to-case bolts in three steps:
1. 2 Nm (18 in. lbs.)
2. 5 Nm (44 in. lbs.)
3. 8.4 Nm (74 in. lbs.)

3. Install transaxle T355 Manual Transmission - Installation.
4. Bleed clutch hydraulic system. Service and Repair
