Description

DESCRIPTION






NOTE: The clutch master cylinder/hydraulic release system does not have its own reservoir. This system is supplied fluid from the brake master cylinder reservoir.

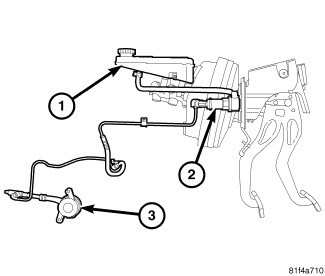

The clutch master cylinder (2) mounts to the clutch pedal and consists of a push rod, a piston and cylinder housing, an interconnecting hydraulic tube and a supply hose which connects to the brake master cylinder reservoir (1) for fluid supply.
