Exhaust Manifold - Installation

INSTALLATION





1. Install a new exhaust manifold gasketDO NOT APPLY SEALER.

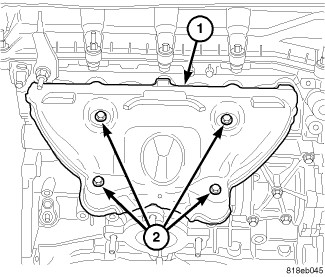

2. Tighten the exhaust manifold bolts to 34 Nm (25 ft. lbs.).





3. Install exhaust manifold heat shields. Tighten bolts to 12 Nm (105 in. lbs.).

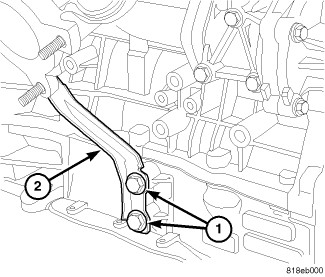

4. Install exhaust manifold support bracket (2).





5. Install new catalytic converter gasket.

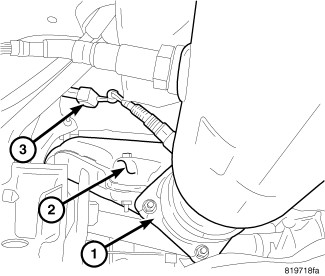

6. Install exhaust pipe to manifold (1). Tighten fasteners to 28 Nm (250 in. lbs.).
7. Connect oxygen sensor electrical connector (3).

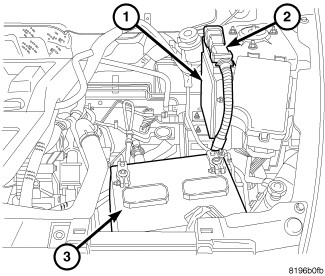

8. Connect negative cable to battery (3).
9. Install engine cover.
