Transmission Range Indicator Lamp - Removal






REMOVAL

NOTE: This procedure applies only to vehicles equipped with an optional automatic transmission.





1. Disconnect and isolate the battery negative cable.

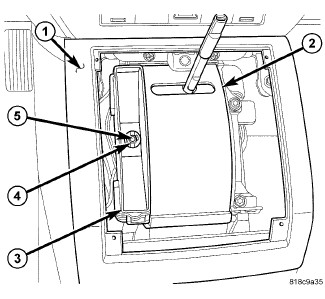

2. Remove the gear selector bezel from the center floor console (1). Shifter Bezel - Removal.
3. Firmly grasp and pull the bulb (5) straight out of the socket (4) in the light box (3) on the left side of the gear selector mechanism (2).
