Front Suspension Lower Ball Joint Boot Seal - Removal

REMOVAL

CAUTION: This procedure is designed to be used only if a seal boot is damaged during related service procedures. It is not to be used as a repair procedure for a cut seal boot on a vehicle that has been driven and exposed to road and weather conditions.





1. Remove the lower control arm from the vehicle. Front Lower Control Arm - Removal

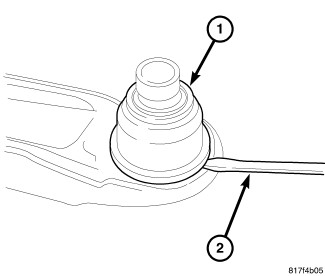

2. Using a screwdriver or other suitable tool (2), pry the seal boot (1) off of the ball joint.
