Power Seat Switch - Installation

INSTALLATION

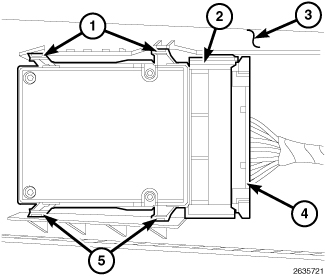

1. Install the power seat switch (2) onto the seat cushion side shield (3). Make sure the retaining tabs (1 and 5) are fully engaged.
2. Connect the wiring harness connector (4) to the power seat switch.
3. Install the seat cushion side shield.
4. Reconnect the negative battery cable.
5. Verify power seat operation.
