Front

ASSEMBLY





1. Before proceeding with the following repair procedure, review all warnings and cautions. Service Precautions

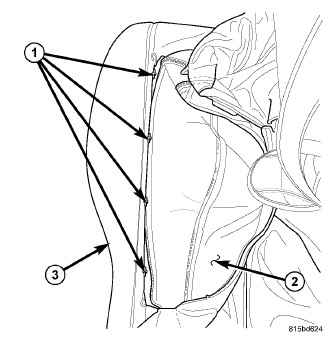

2. Position the seat cushion cover (2) over the seat cushion foam (3) and attach new hog rings (1).

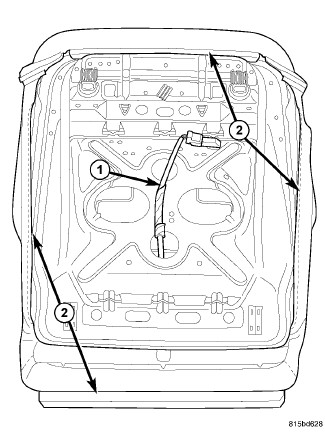

3. Connect the seat cushion cover J-straps (2) to the seat pan.
