Door

REMOVAL

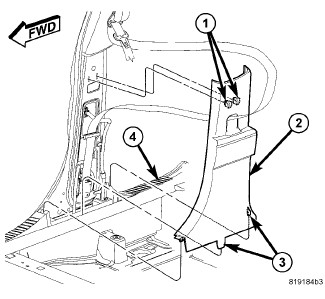

1. Separate the lower B-pillar trim (2) from the pillar and position aside.





2. Using a trim stick C-4755 or equivalent, release the retaining clips (4) and remove the door scuff (3).
