SEAT, Third Row: Removal: Removal

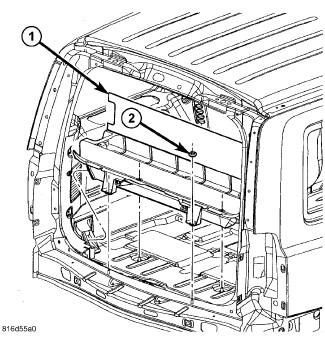

Fig 1: Load Floor
GC0132322Courtesy of CHRYSLER LLC
  1. Remove the cargo load floor (1). See Body/Interior/LOAD FLOOR - Removal .

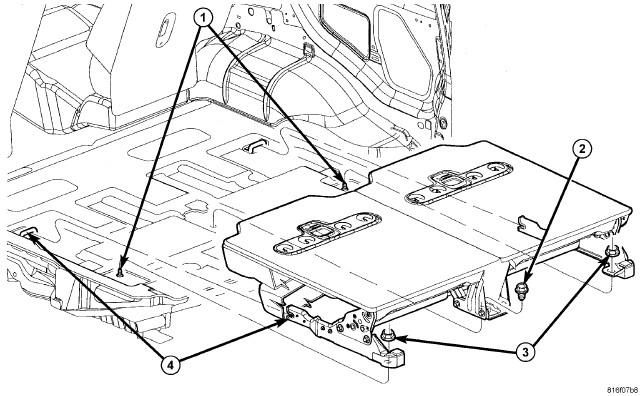

    Fig 2: Seat Removal
    GC0132328Courtesy of CHRYSLER LLC
  2. Remove the inner nut and bolt (2).
  3. Remove the outer nuts (3).
  4. Lift seat assembly up off of the studs (1) and release the front hooks from the strikers (4).
  5. Remove the seat.

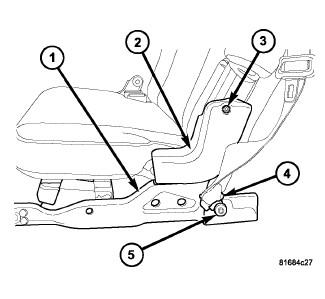

    Fig 3: Identifying Lower Seat Belt Anchor And Trim
    GC0132243Courtesy of CHRYSLER LLC
  6. Remove the bolt (5) and remove the lower seat belt anchor (4).
