Body - Interior & Exterior: Decklid/Hatch/Liftgate/Tailgate: Liftgate: Removal: Removal

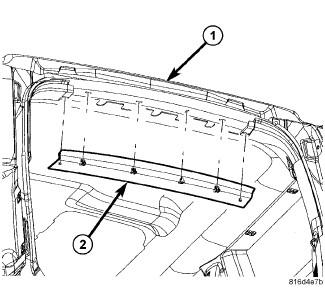

Fig 1: Upper Trim Molding

Courtesy of CHRYSLER LLC

WARNING: Do not disconnect the support rod cylinders with the liftgate closed. The support rod pistons are operated by high pressure gas. This pressure could cause damage and/or personal injury if they are removed while the pistons are compressed.

1. Open and support the liftgate.
2. Using a trim stick C-4755 or equivalent, remove the upper rear headliner trim.

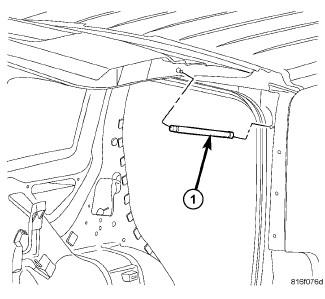

   Fig 2: Gate Support

   Courtesy of CHRYSLER LLC
3. Remove the support struts (1) from the liftgate. See Body/Decklid/Hatch/Liftgate/Tailgate/PROP, Gas - Removal .

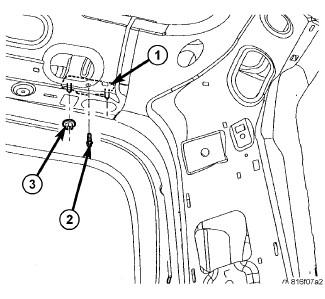

   Fig 3: Hinge - Body

   Courtesy of CHRYSLER LLC
4. Disconnect the wire harnesses and the washer hose.
5. Using a grease pencil or equivalent, mark the hinge location.
6. Remove the liftgate to body fasteners (2 and 3) and remove liftgate from vehicle.
