Rear Heater Core - Description

DESCRIPTION

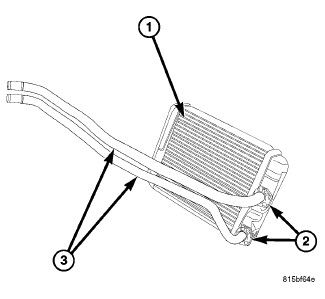

The rear heater core (1) is located in the rear HVAC housing, behind the right interior quarter trim panel. The rear heater core is a heat exchanger made of rows of tubes and fins. The heater core tubes (3) are attached to the heater core by metal retaining clamps (2) and rubber O-ring seals

The rear HVAC housing must be removed from the vehicle to service the rear heater core.
