Rear Blower Motor - Description

DESCRIPTION

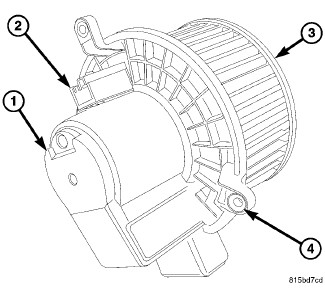

The rear blower motor (1) is a 12-volt, direct current (DC) motor mounted within a plastic housing with an integral wire connector (2) and squirrel cage-type blower wheel (3) that is secured to the blower motor shaft. Three integral mounting tabs (4) allow the rear blower motor to be secured to the outboard side of the rear HVAC housing.

The rear blower motor can be accessed for service by removing the HVAC housing.
