Front Blower Motor Relay - Removal

REMOVAL

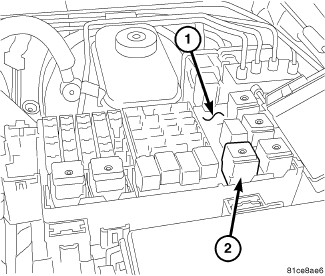

NOTE: LHD gasoline model shown. Diesel and RHD models similar.

1. Disconnect and isolate the negative battery cable.
2. Open the cover of the power distribution center (PDC) (1) located in the engine compartment.
3. Remove the blower motor relay (2) from the PDC.
