Accessory Drive Idler Pulley - Installation






5.7L ENGINE

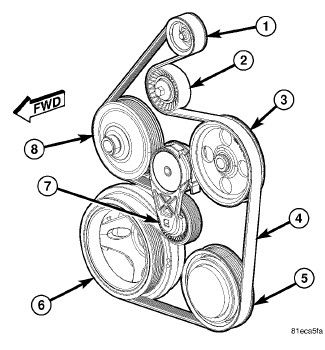

1. Position the idler pulley (2).
2. Install the idler pulley (2) bolt. Tighten the bolt to 54 Nm (40 ft. lbs.).
3. Install the accessory drive belt (4).Serpentine Accessory Drive Belt - Installation
