Vibration Damper - Removal

REMOVAL





1. Disconnect negative cable from battery.
2. Remove accessory drive belt Serpentine Accessory Drive Belt - Removal.
3. Drain cooling system Service and Repair.
4. Remove radiator upper hose.
5. Remove fan shroud Cooling Fan - Removal.
6. Remove crankshaft damper bolt.

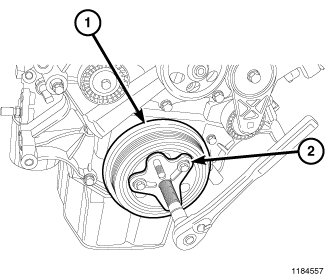

7. Install puller (2) and remove damper (1).
