Rear Shock Absorber - Installation






INSTALLATION

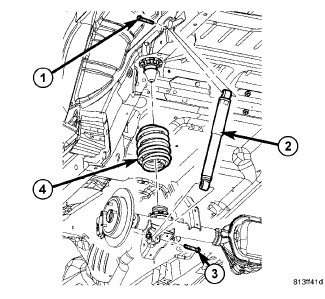

1. Install the shock absorber (2) in the frame bracket and install the bolt (1).

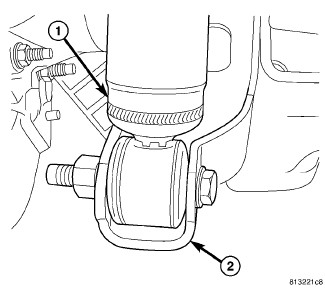

2. Install the shock absorber (1) in the axle bracket (2) and install the bolt.
3. Tighten the upper mounting bolt/nut to 95 Nm (70 ft. lbs.). Tighten the lower mounting bolt/nut to 115 Nm (85 ft. lbs.).
4. Remove the supports and lower the vehicle.
