Rear Suspension - Description

DESCRIPTION










The rear suspension is comprised of :

- Drive axle
- Shock absorbers
- Coil springs

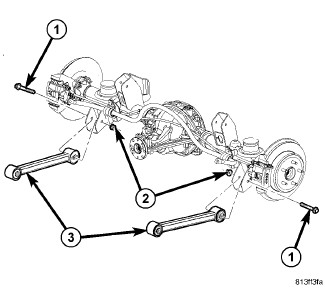

- Lower suspension arms (3)
- Upper suspension arm
- Stabilizer bar

CAUTION: Suspension components with rubber/urethane bushings should be tightened with the vehicle at normal ride height. It is important to have the springs supporting the weight of the vehicle when the fasteners are torqued. This will maintain vehicle ride comfort and prevent premature bushing wear.
