Rear

REMOVAL

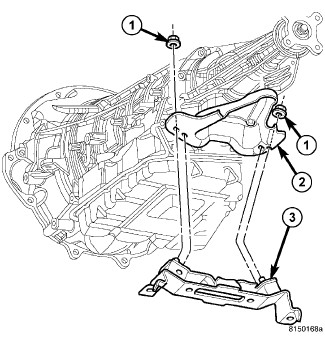

4X2





1. Raise the vehicle on a hoist.
2. Using a suitable jack, support transmission.
3. Remove the crossmember.
4. Remove the fasteners (1) from the transmission mount to transmission.
5. Remove the mount (3).
6. Remove the transmission mount bracket (2), if required.

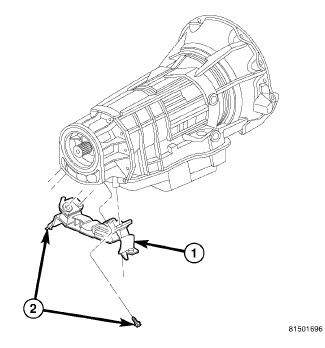

4X4





1. Raise the vehicle on a hoist.
2. Using a suitable jack, support transmission.
3. Remove the crossmember.
4. Remove the fasteners (2) from the transmission mount (1) to transmission.
5. Remove the mount.
