Front

REMOVAL





1. Disconnect negative battery cable.
2. Raise vehicle.
3. Remove engine mount through bolts.
4. Raise engine using suitable jack.

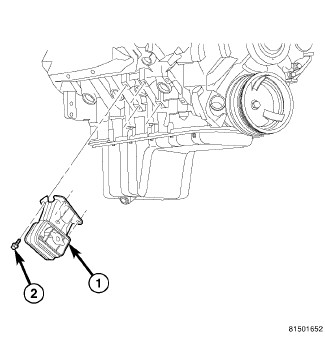

5. Remove engine mount bolts (2).
6. Remove mount (1) from engine.
