Cylinder Head Cover(s) - Removal

REMOVAL






NOTE: The gasket may be used again, providing no cuts, tears, or deformation has occurred.

1. Disconnect negative cable from battery.
2. Remove the resonator assemble and air inlet hose.
3. Disconnect injector connectors and un-clip the injector harness.

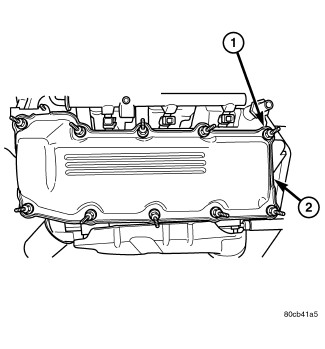

4. Route injector harness in front of cylinder head cover (2).
5. Disconnect the left side breather tube and remove the breather tube.
6. Remove the cylinder head cover mounting bolts (1).
7. Remove cylinder head cover and gasket.
