Rear Suspension Description

DESCRIPTION





This vehicle uses a multi-link rear suspension design.

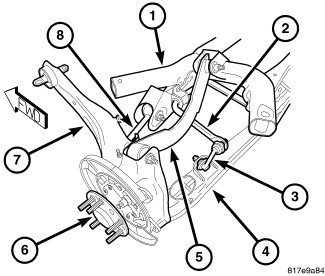

The rear suspension consists of these major components:

- (1) Rear Crossmember
- (2) Stabilizer Bar
- (3) Stabilizer Link
- (4) Lower Control Arm
- (5) Upper Control Arm
- (6) Hub And Bearing
- (7) Trailing Arm
- (8) Toe Link

Information on the rear crossmember can be found in The Frame And Bumpers Group. Information on all other components can be found.

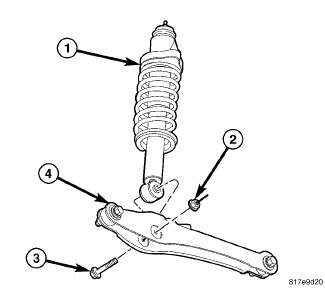

Also included in the rear suspension is a rear shock assembly (1). It fastens to the lower control arm (4) and body.
