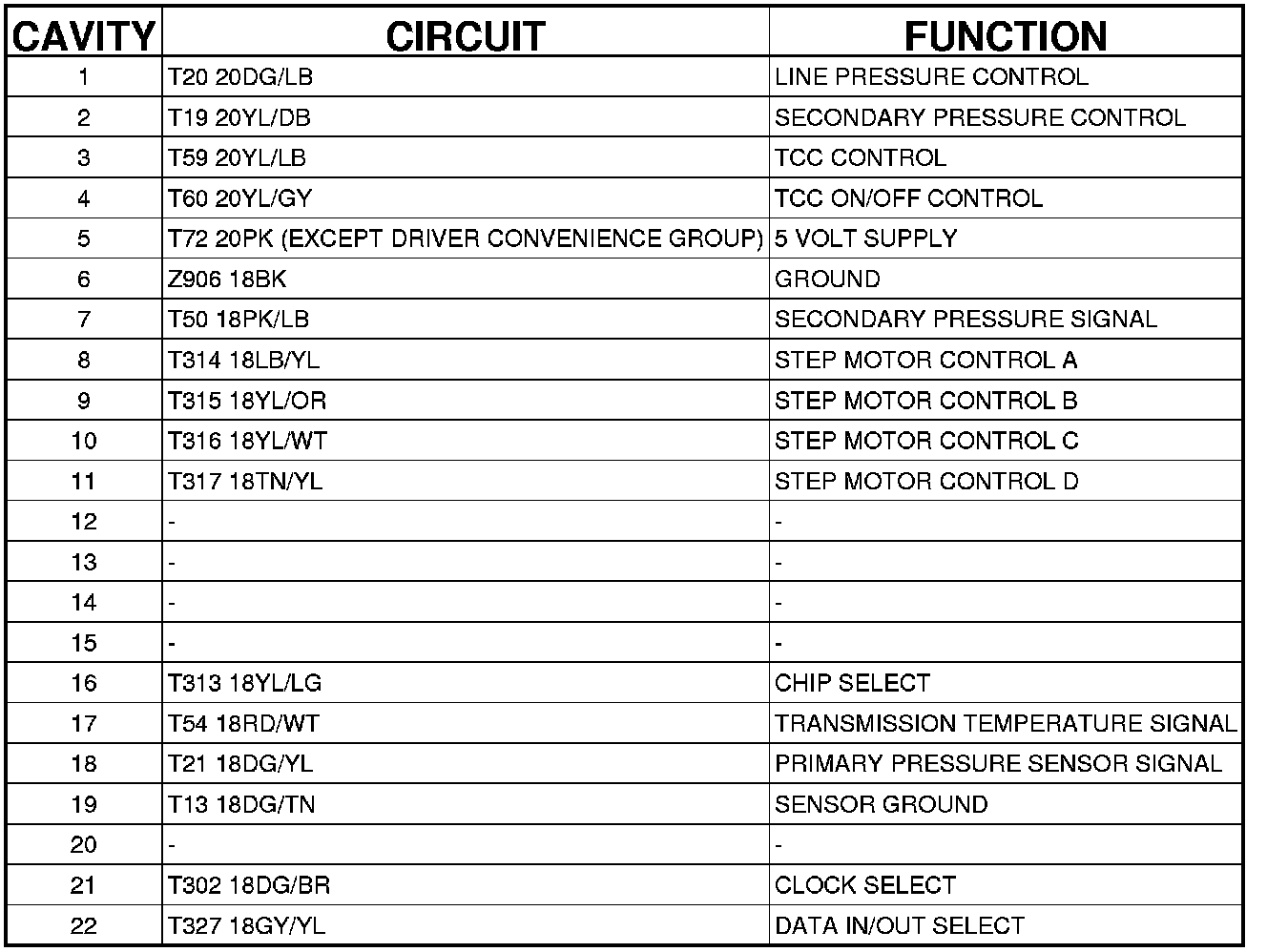

Home >> Jeep >> 2009 >> Patriot 2WD L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Actuators and Solenoids - Transmission and Drivetrain >> Actuators and Solenoids - CVT >> Shift Solenoid >> Diagrams
