Cluster C2 (Instrument Panel) 20 Way

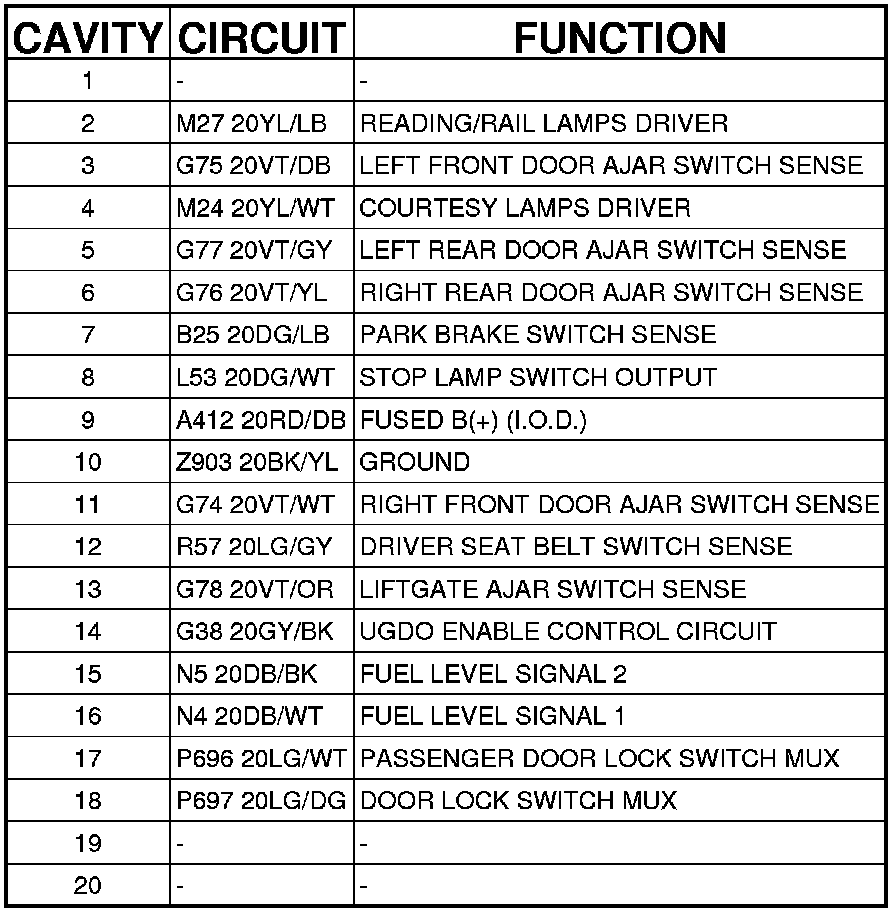

Connector C2 - (INSTRUMENT PANEL) 20 WAY




CLUSTER - (INSTRUMENT PANEL) 20 WAY
