C309 (Right Rear Door Side) 14 Way
C309 (Right Rear Door Side) 14 Way

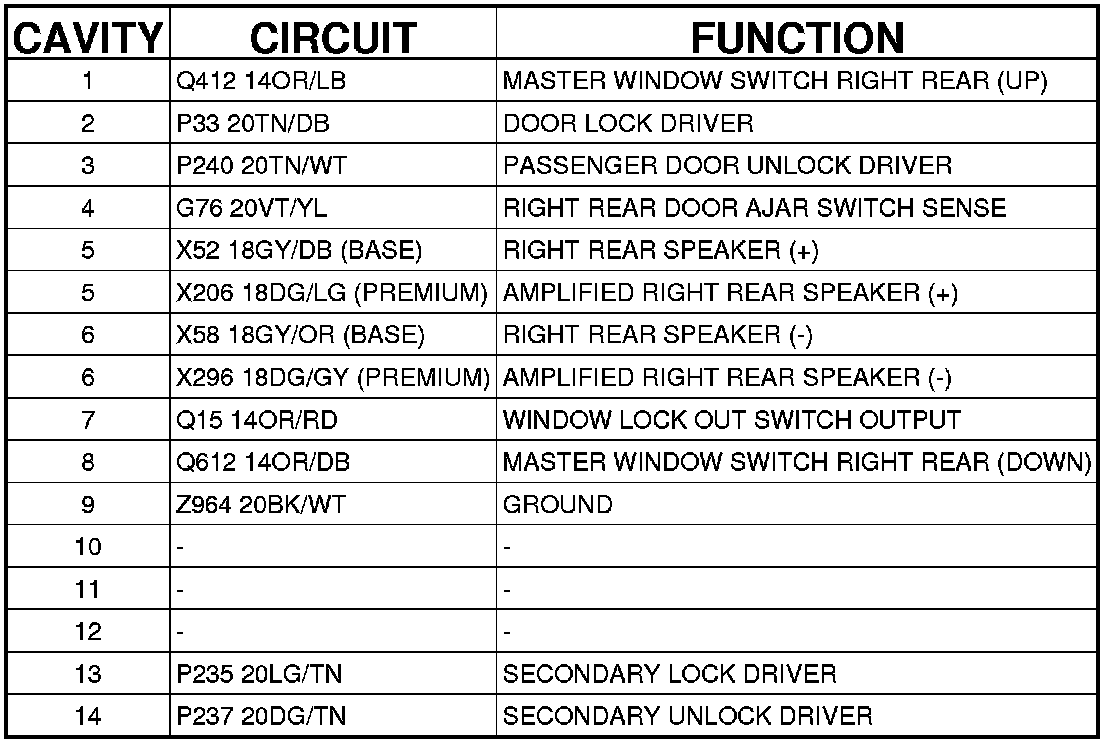

Connector - (RIGHT REAR DOOR SIDE) 14 WAY
C309 - (RIGHT REAR DOOR SIDE) 14 WAY
