Sunroof Switch - Installation

INSTALLATION





1. Position the sunroof control switch (4) into the vehicle.
2. Connect the sunroof control switch electrical connector (3).

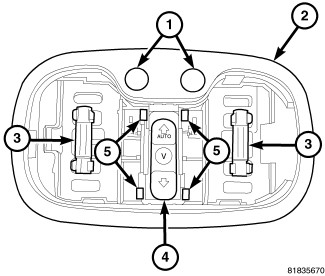

3. Insert the sunroof control switch (4) into the courtesy/reading lamp assembly (2). Push up on the switch until it is securely held in place by the mounting tabs (5).

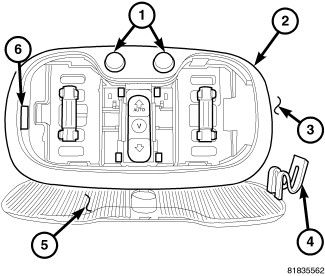

4. Insert the mounting tab (4) on the lamp lens (5) into the right side of the lamp assembly and pivot the lens up until it snaps securely in place.
5. Connect the negative battery cable.
