Fuel Tank

INSTALLATION

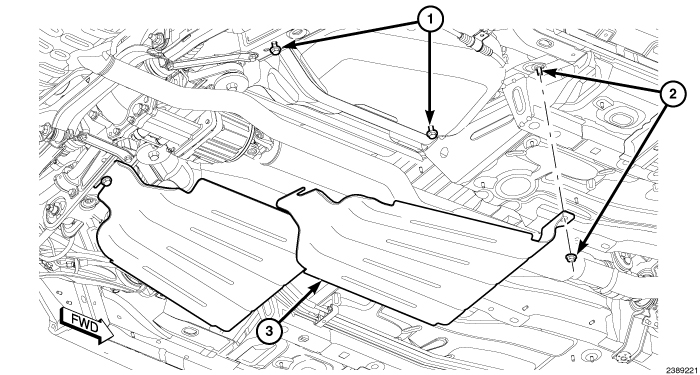

NOTE: Right side plate shown, left side plate is similar.

1. Hand start the bolts (1).
2. Position the skid plate over the bolts (1) and stud (2).
3. Tighten the bolts (1) to 30 Nm (22 ft. lbs.).
4. Tighten the nut (2) to 25 Nm (18 ft. lbs.).
