Front Door Striker: Adjustments

ADJUSTMENTS

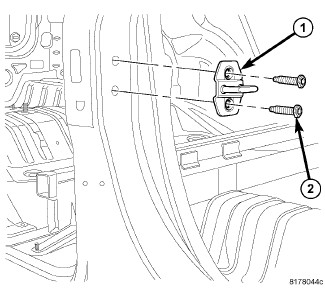

1. Using a grease pencil or equivalent, mark the location of the door latch striker (1) on the B-pillar to aid in adjustment.
2. Loosen the two screws (2) that secure the door latch striker to the B-pillar.
3. To adjust the rear gap and flush measurement, change the position of the door latch striker and then tighten the two bolts to 26 Nm (19 ft. lbs.), .
4. Verify correct door and latch position.
