Rear Bumper Fascia - Installation

INSTALLATION

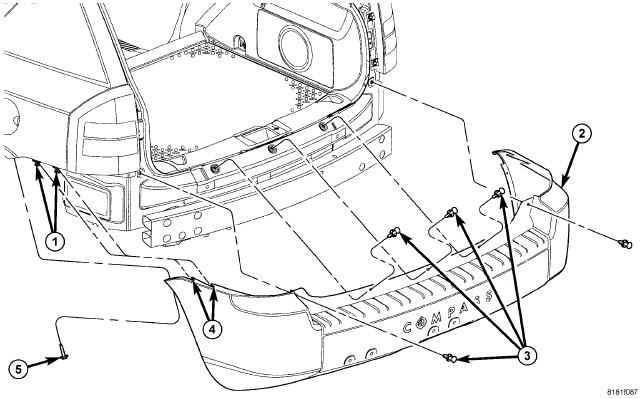

1. Install the fascia and line up the slots (4) with the screws (1 and 5) and seat fully.
2. Tighten the screws (1 and 5).

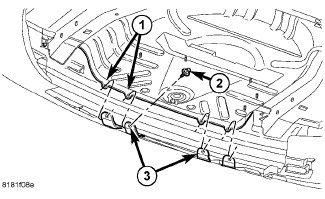

3. Install the push pin fasteners (3).





4. Install the lower fasteners (3).

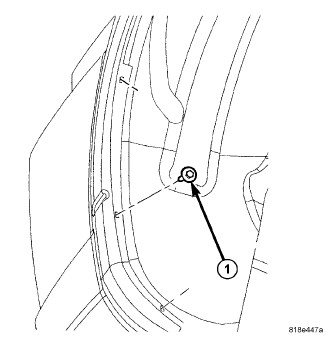

5. Install the fascia to splash shield screws (1).
