Radio - Removal






REMOVAL

1. Disconnect and isolate the battery negative cable.
2. Remove instrument panel center bezel. Instrument Panel Bezel - Removal.
3. Remove mounting fasteners and remove radio from instrument panel.
4. Disconnect wire harness connectors from radio.

CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.

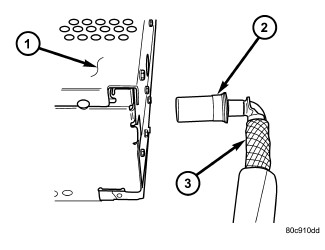

5. Disconnect the antenna cable (3) by pulling the locking antenna connector (2) away from the radio (1).
