Jeep
>>
2009
>>
Liberty 2WD V6-3.7L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Power Window Switch
>>
Diagrams
>>

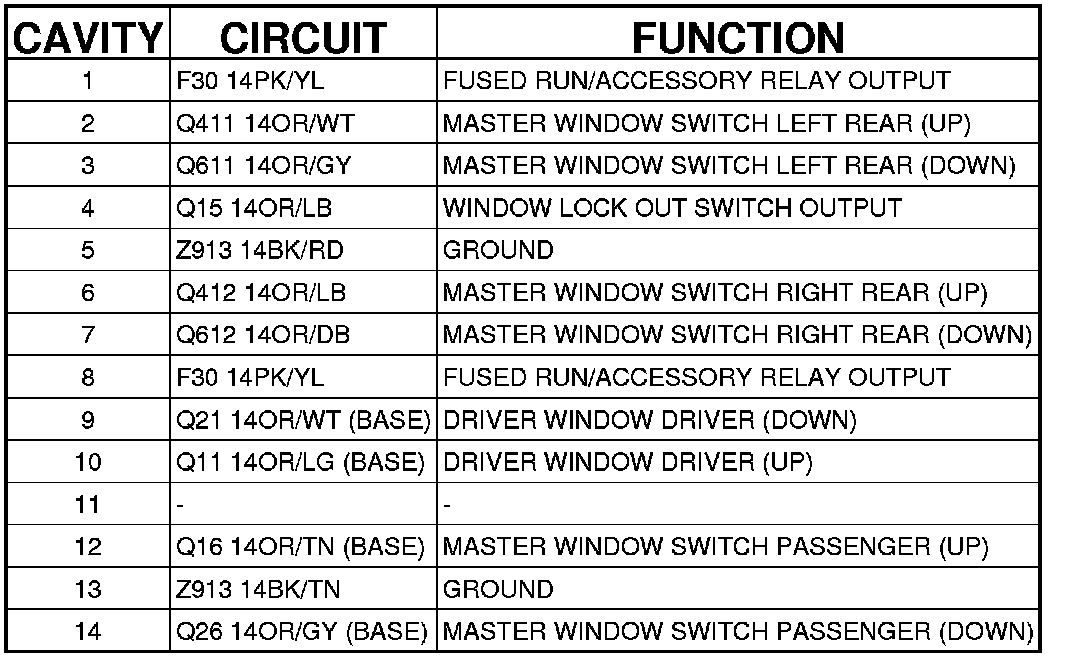

Driver Window/Door Lock Switch C1 (Front Door) 14 Way
Driver Window/Door Lock Switch C1 (Front Door) 14 Way
Connector C1 - (FRONT DOOR) 14 WAY
SWITCH-WINDOW/DOOR LOCK-DRIVER - (FRONT DOOR) 14 WAY
