Liftgate Trim and Speaker Panel

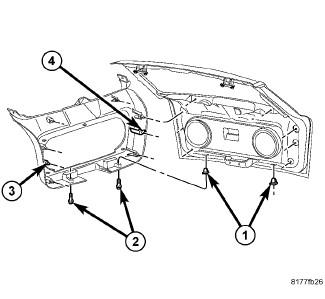

Fig 1: Liftgate Trim Panel

Courtesy of CHRYSLER LLC

NOTE: Caliber shown, Compass and Patriot similar.

Remove the screws (2).
Using a trim stick C-4755 or equivalent, separate the clip fasteners (4) and remove the trim panel (3).

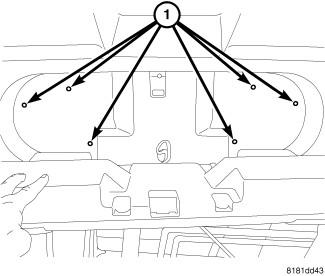

Fig 2: Speaker Fasteners
Courtesy of CHRYSLER LLC
Open the speaker panel assembly and remove the screws (1).

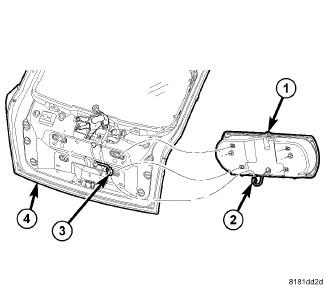

Fig 3: Speaker Panel Assembly
Courtesy of CHRYSLER LLC
Disconnect the electrical connectors (2 and 3) and remove the speaker panel assembly (1).
