COVER, Seat Back, Front: Removal: Removal

Fig 1: FRONT SEAT

Courtesy of CHRYSLER LLC

Before proceeding with the following repair procedure, review all warnings and cautions. See Body/Seats - Warning
Remove the front seat. See Body/Seats/SEAT - Removal

Fig 2: HANDLES & SHIELDS
Courtesy of CHRYSLER LLC
Remove the lumbar and recliner handles (1).
Remove the screws and remove the side shields (2).

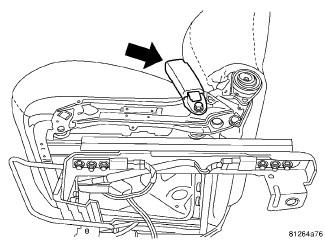

Fig 3: BUCKLE
Courtesy of CHRYSLER LLC
Remove the belt buckle.

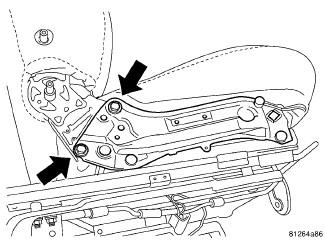

Fig 4: BACK BOLTS
Courtesy of CHRYSLER LLC
Remove the seat back bolts from both sides.

Fig 5: HEAD REST
Courtesy of CHRYSLER LLC
Remove the headrest.

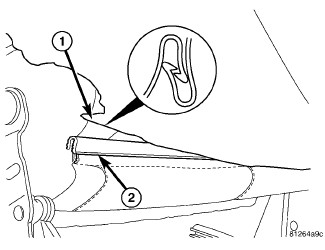

Fig 6: ZIP STRIP
Courtesy of CHRYSLER LLC
Separate the j-straps (1 AND 2) and pull cover up over frame.

Fig 7: SEAT BACK HOG RINGS
Courtesy of CHRYSLER LLC
Cut off the hog rings (2) attaching the cover (3) to the cusion (1).

Fig 8: HEADREST SLEEVE REMOVAL
Courtesy of CHRYSLER LLC
Squeeze the locking tab (3) and remove the headrest sleeves (1) and remove the cover.
