STRIKER, Latch: Removal: Removal

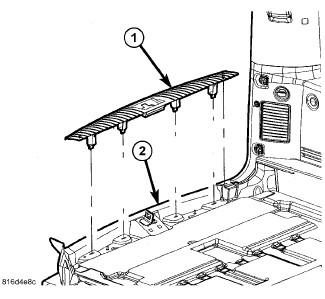

Fig 1: LOWER TRIM

Courtesy of CHRYSLER LLC

Using a trim stick C-4755 or equivalent, disengage the retaining tabs that secure the liftgate scuff plate to the liftgate door sill and remove the scuff plate.

Fig 2: STRIKER
Courtesy of CHRYSLER LLC
Mark the latch striker (1) location on the inside of the liftgate opening lower panel to aid reinstallation.
Remove the two screws (2) that secure the latch striker to the inside of the liftgate opening lower panel.
Remove the latch striker from the vehicle.
