GLASS, Flip-Up: Removal: Removal

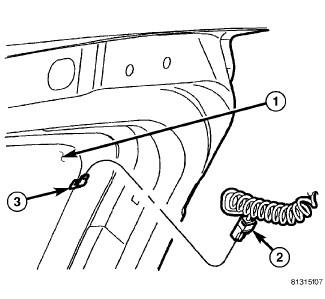

Fig 1: GLASS ELECTRICAL

Courtesy of CHRYSLER LLC

NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.

Disconnect heated liftgate glass electrical connector (2).

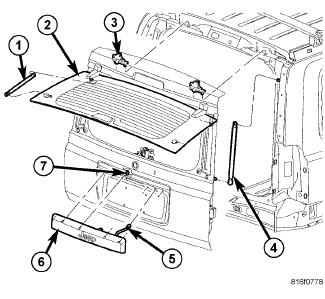

Fig 2: LIFTGATE
Courtesy of CHRYSLER LLC
Open the liftgate glass (2) and support.
Disconnect glass support cylinders (1) at the lower ball studs. See Body/Decklid/Hatch/Liftgate/Tailgate/PROP, Gas - Removal .

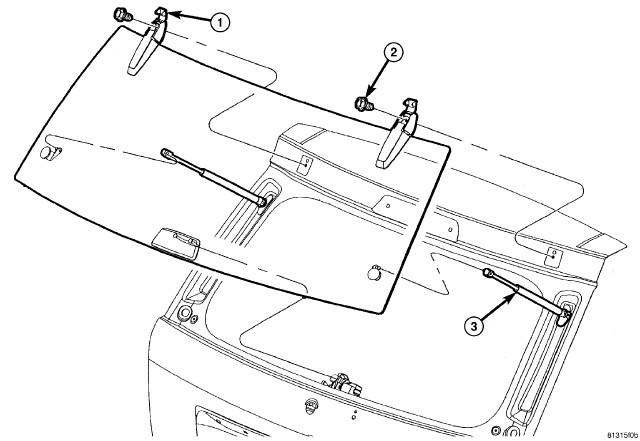

Fig 3: GLASS
Courtesy of CHRYSLER LLC

NOTE: Grand Cherokee (WK) shown, Commander (XK) similar.
Close the glass but not latch in the closed position.
Remove hinge covers and remove hinge bolts (2).
Remove the glass.
