GUIDE, Sunroof, Glass: Removal: Removal

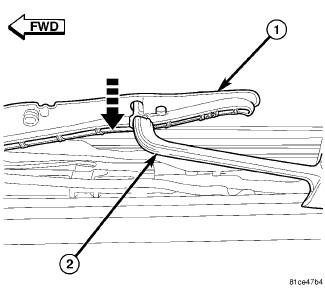

Fig 1: CHANNEL ARM DISCONNECT

Courtesy of CHRYSLER LLC

Place the sunroof in the vent position.
Remove the sunroof assembly. See Body/Sunroof/SUNROOF - Removal
Remove the motor. Refer to Electrical/Power Top/MOTOR, Sunroof - Removal
Remove the glass. See Body/Sunroof/GLASS, Sunroof - Removal
Remove the wind deflector. See Body/Sunroof/DEFLECTOR, Wind - Removal
Separate the drain channel arms (2) from the guide mechanisms (1) one at a time.
CAUTION: Do not pry the channel arms apart at the same time or you could break the drain channel.
Slide the drain channel rearward out of the way.

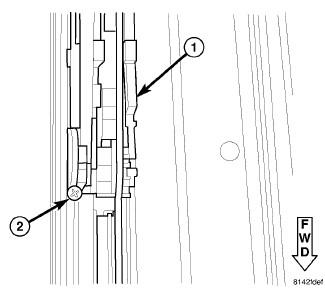

Fig 2: HARD STOP SCREW
Courtesy of CHRYSLER LLC
Remove the hard stop screw from the frame.

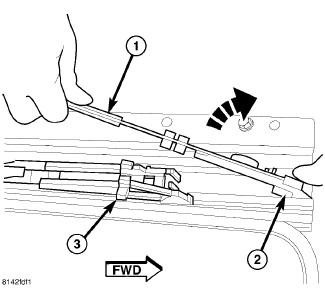

Fig 3: Pushing Drive Cable & Guide Plate Forward
Courtesy of CHRYSLER LLC
Push the drive cable and guide plate forward past the hard stop screw location until the glass guide comes loose.

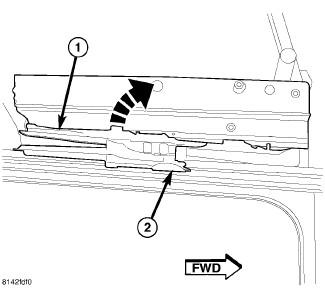

Fig 4: Rotating Guide Up & Out Of Front Beam
Courtesy of CHRYSLER LLC
Rotate the guide (1) up and out of the front beam (3) and release the front foot (2) from the channel guide.
