Power Steering Pump Pulley - Removal






REMOVAL






CAUTION: Do not reuse the old power steering pump pulley it is not intended for reuse. A new pulley must be installed if removed.

1. Remove the power steering pump assembly, Power Steering Pump - Removal.

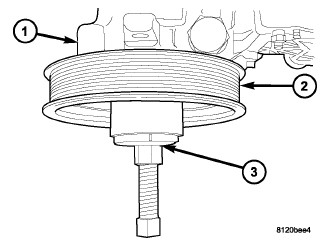

2. Remove the pulley (2) from the pump (1) using (OTC(R) 7185) power steering pulley removal tool (3) or equivalent.
