Rear Differential Solenoid (Underbody) 2 Way

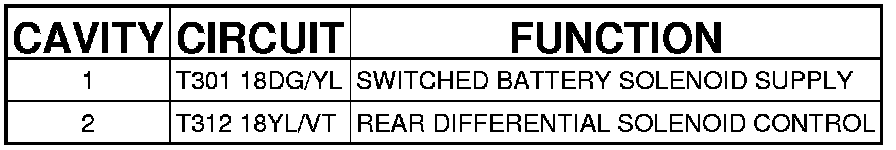

Connector - (UNDERBODY) 2 WAY

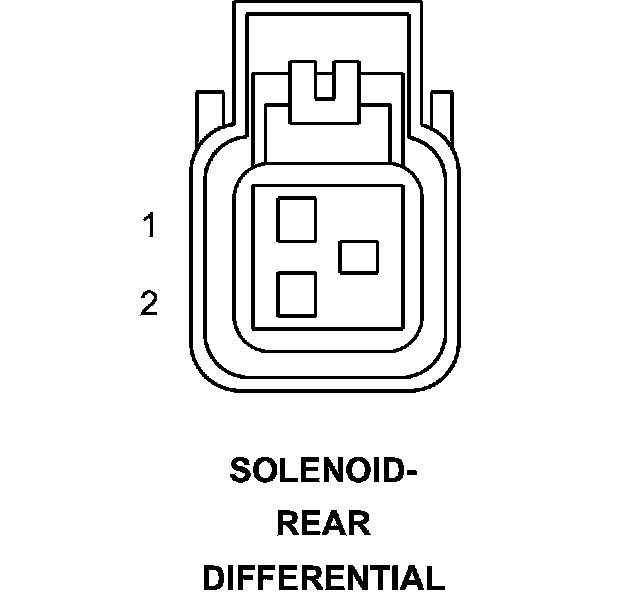

SOLENOID-REAR DIFFERENTIAL - (UNDERBODY) 2 WAY
