Serpentine Accessory Drive Belt - Installation

4.7L ENGINE










1. Check condition of all pulleys.

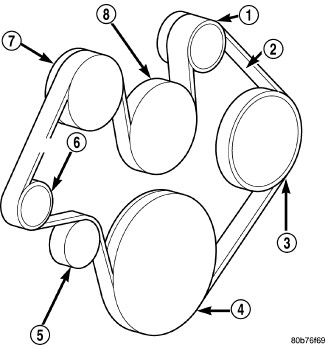

2. Install new belt (2). Rotate the tensioner arm (6) until it contacts its stop position. Route the belt (2) around the idler (5) and slowly let the tensioner (6) rotate into the belt. Make sure the belt (2) is seated onto all pulleys.

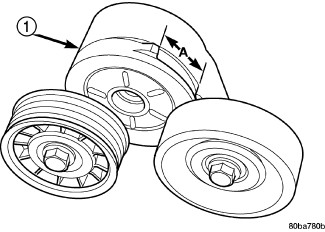

3. With the drive belt installed, inspect the belt wear indicator. The gap between the tang and the housing stop (measurement A ) must not exceed 24 mm (.94 inches).
