Seat Belt Buckle Switch
>>
Diagrams
>>
Passenger Seat Belt Switch (Passenger Seat) 2 Way
Passenger Seat Belt Switch (Passenger Seat) 2 Way

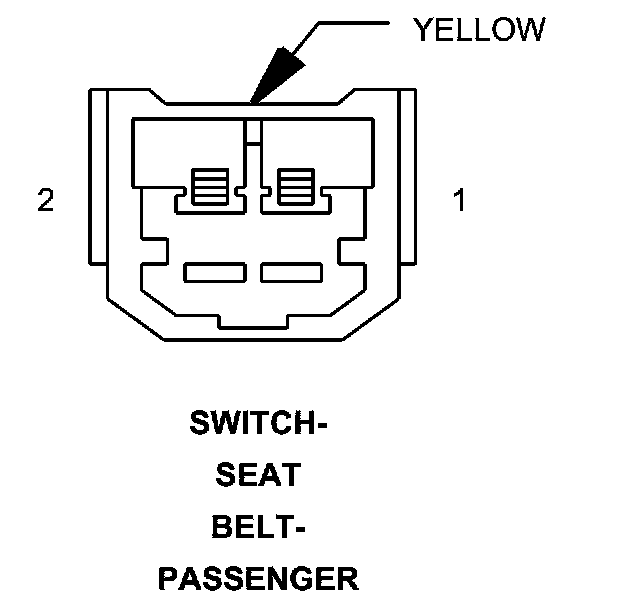

Connector - (PASSENGER SEAT) 2 WAY

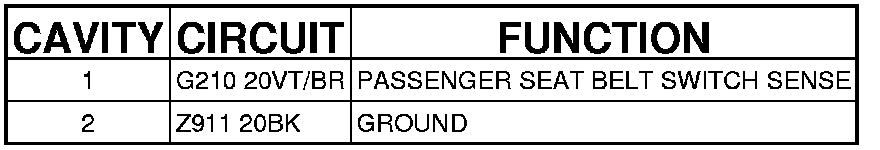

SWITCH-SEAT BELT-PASSENGER - (PASSENGER SEAT) 2 WAY
