Removal
REMOVAL
1. Disconnect and isolate the battery negative cable.

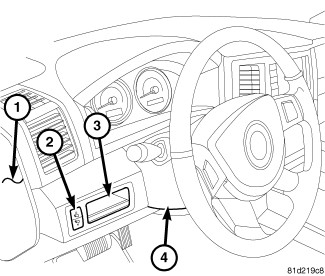

2. Remove the I/P End Cap (1).
3. Reach into the I/P and push the bin (3) out the front of the I/P.
4. Remove wiring connector.
5. Remove switch (2) from bin (3).
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove the I/P End Cap (1).
3. Reach into the I/P and push the bin (3) out the front of the I/P.
4. Remove wiring connector.
5. Remove switch (2) from bin (3).
