Park Assist Sensor 2 (Front Park Assist) (Front Fascia) 3 Way

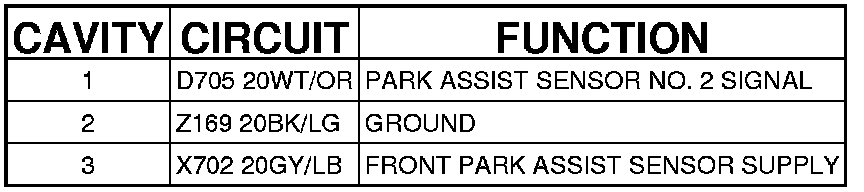

Connector (FRONT PARK ASSIST) - (FRONT FASCIA) 3 WAY

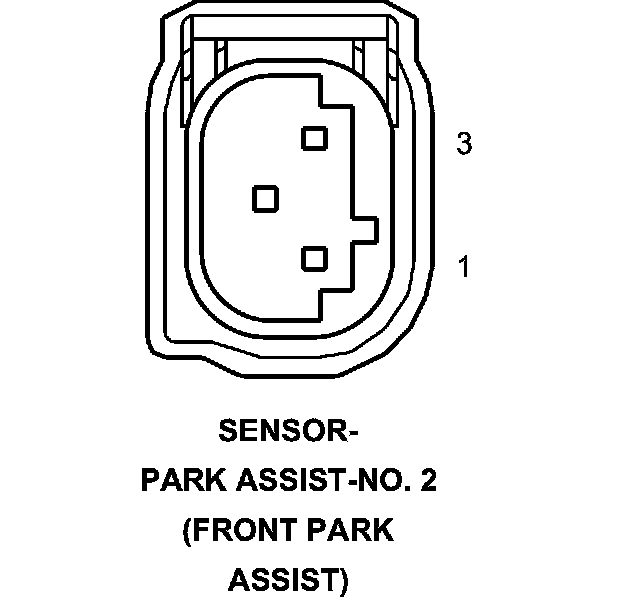

SENSOR-PARK ASSIST-NO. 2 (FRONT PARK ASSIST) - (FRONT FASCIA) 3 WAY
