Radio C3 (DVD/Rear Camera) (Instrument Panel) 22 Way

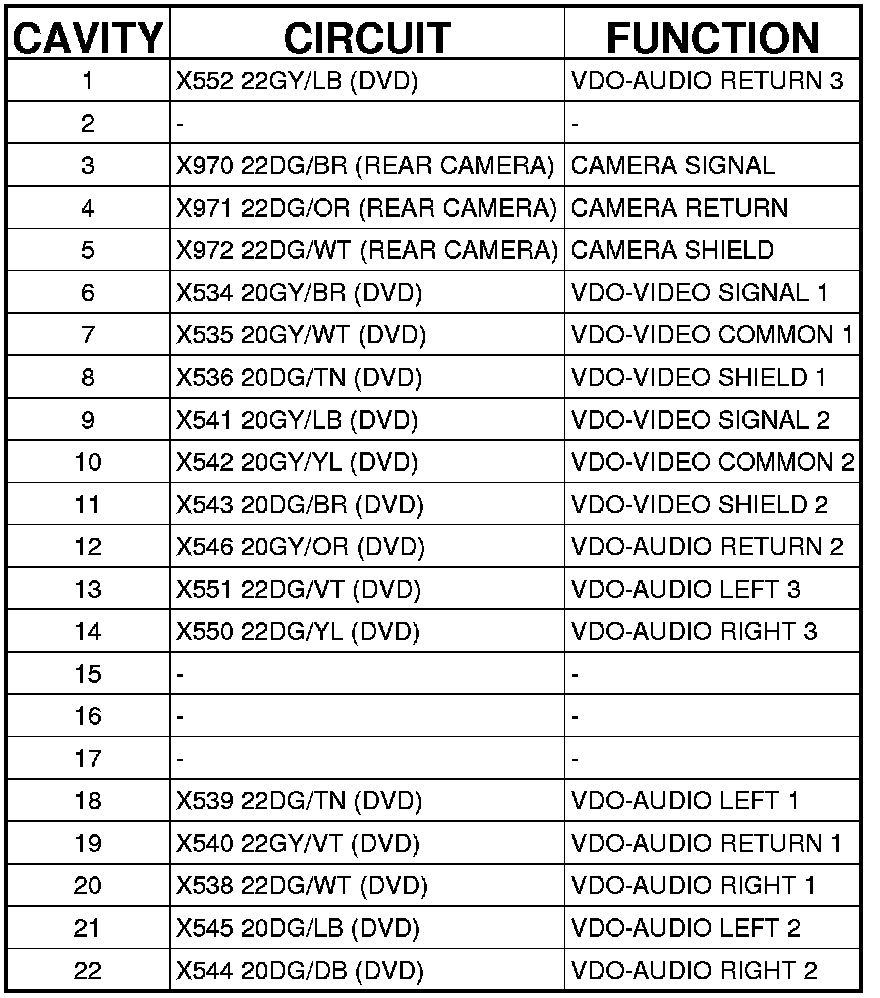

Connector C3 (DVD/REAR CAMERA) - (INSTRUMENT PANEL) 22 WAY




RADIO (DVD/REAR CAMERA) - (INSTRUMENT PANEL) 22 WAY
