Satellite Radio Antenna Mast - Installation

INSTALLATION

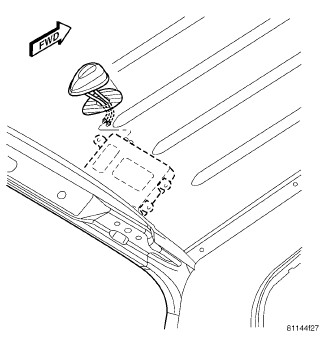

1. Insert wire harness through hole in roof panel. Press antenna into position until both retainers snap into place.

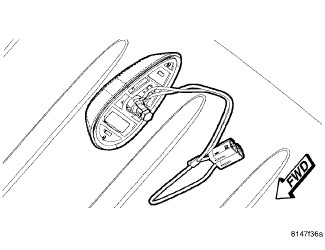

2. Connect wire harness connectors to antenna.
3. Install and tighten retaining fastener.
4. Install headliner Headliner - Installation.
5. Connect battery negative cable.
