Second Row

INSTALLATION

OUTBOARD SEATS

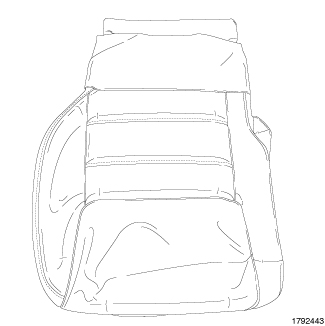

1. Install the seat cushion cover and new hog ring retainers to the seat cushion foam.
2. Install the seat cover cushion and foam to the seat frame.

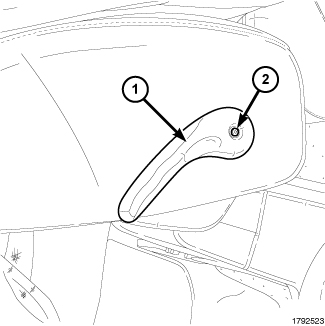

3. Install the seat latch release handle and handle fastner.
4. Release the latches and fold the seat forward.

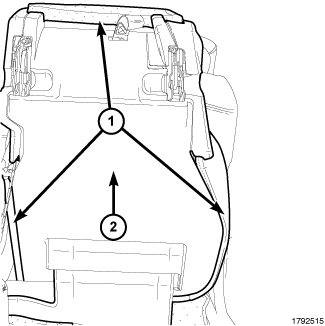

5. Secure the 3 J-clip retainers to the seat shield on the bottom of the outboard seat.





6. Install both side trim panels.

CENTER SEAT

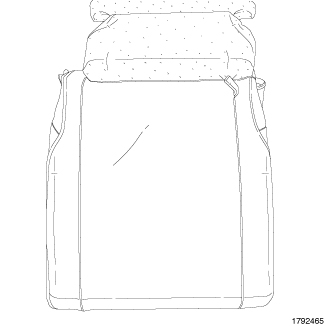

1. Install the seat cushion cover and new hog ring retainers to the seat cushion foam.
2. Install the seat cover cushion and foam to the seat frame.

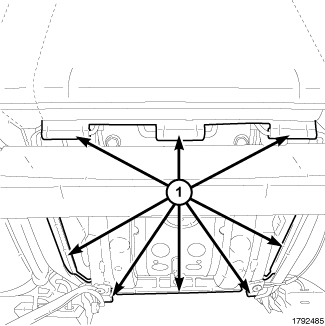

3. Secure the 8 J-clip retainers.





4. Install the center seat trim panels.
5. Install the second row seat assembly.
