Load Floor Latch - Removal

REMOVAL

1. Remove the load floor, Load Floor - Removal.

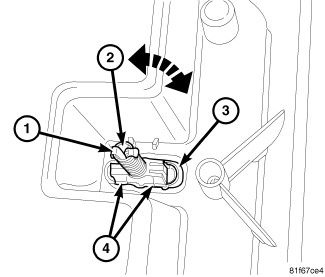

2. On 2005-2006 vehicles, twist the springs (2) off the latch legs (1) and remove the latch(es) (3).

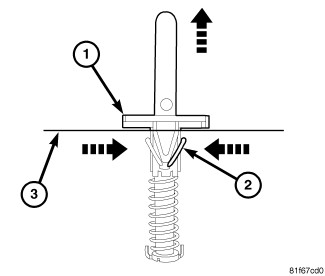

3. On 2007 and later vehicles, release the tabs (2) on the load floor latch(es) (1) and separate from the load floor (3).
