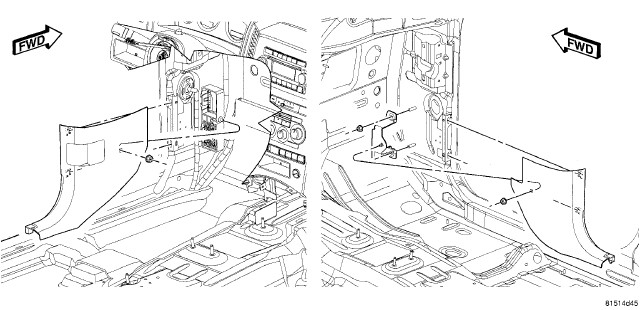

Cowl Trim Panel - Installation

INSTALLATION





1. Align the fastener hole in the cowl trim panel with the stud on the mounting bracket and then seat the trim panel onto the mounting bracket.
2. Install the nut that secures the cowl trim panel to the mounting bracket.
3. Install the hush panel.
4. Install the front door sill scuff plate, Scuff Plate - Installation.
