Floor Console - Removal

REMOVAL

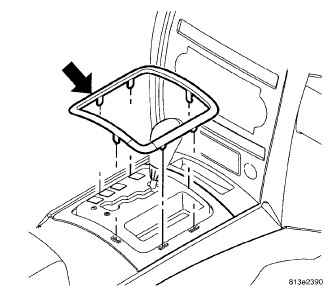

1. Using a trim stick C-4755 or equivalent, remove the shifter bezel ring.

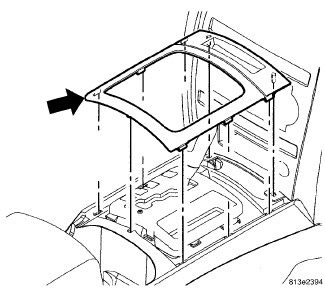

2. Using a trim stick C-4755 or equivalent, remove the shifter bezel.

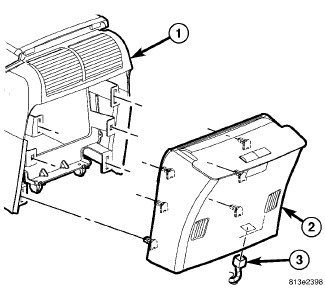

3. Remove the center console back cover (2) and disconnect the electrical connector (3).

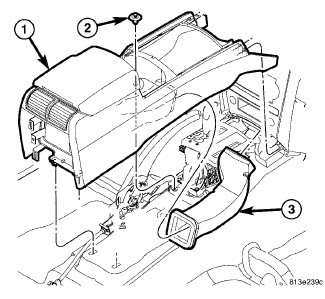

4. Using trim stick C-4755 or equivalent, remove the cup holder mat, the screw (2) and remove the console (1).
