Park Assist Sensor 4 (Front Park Assist) (Front Fascia) 3 Way

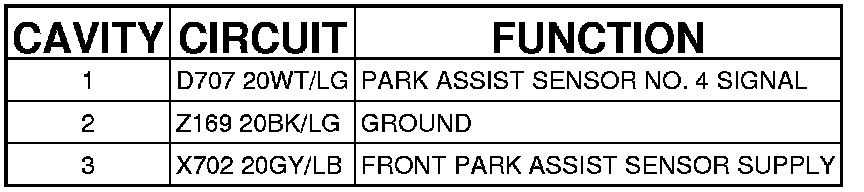

Connector (FRONT PARK ASSIST) - (FRONT FASCIA) 3 WAY

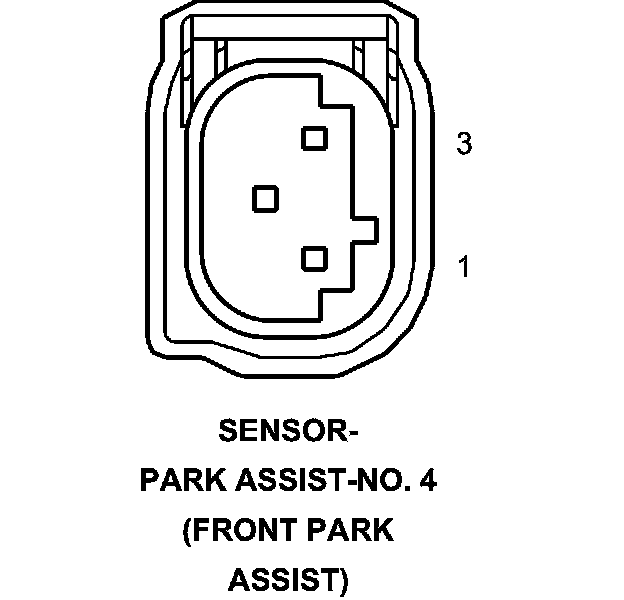

SENSOR-PARK ASSIST-NO. 4 (FRONT PARK ASSIST) - (FRONT FASCIA) 3 WAY
