Satellite Radio Antenna - Removal

REMOVAL





1. Disconnect and isolate the battery cable.
2. Remove D-pillar trim.
3. Remove headliner Headliner - Removal.

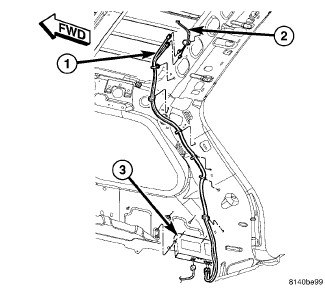

4. Disconnect antenna cable (1) from antenna (2).
5. Cut both ends of cable as far back from the antenna and the receiver and leave remaining in the harness.





6. Disconnect antenna cable from satellite receiver.
